2070-543/998-406 | WAGO

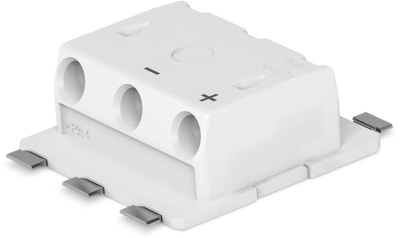

PCB terminal, 3 pole, pitch 6.5 mm, AWG 24-18, 9 A, push-in cage clamp, white, 2070-543/998-406
Unit Price (€ / pc.)
0.8925 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal, 2070-543/998-406, WAGO

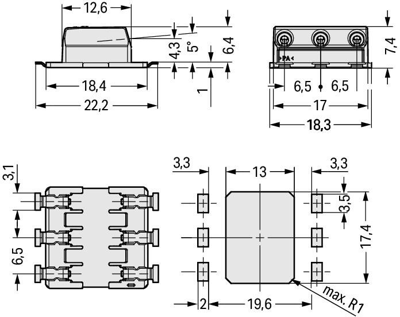

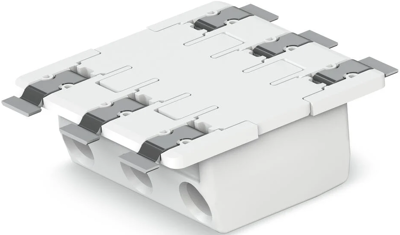

Through-Board SMD PCB Terminal block, 0.75 mm², pin spacing: 6.5 mm, 3-pole, push-in cage clamp, 0.75 mm², white.
Features
- Push-in termination of solid conductors
- Insert fine-stranded conductors and remove all conductors via operating tool
- Overvoltage category: III
- Pollution degree: 2
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-18 | |
| Breite | 15.8 mm | |
| Farbe | weiß | |
| Höhe | 7.45 mm | |
| Leiterquerschnitt | 0,2-0,75 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 9 A | |
| Polzahl | 3-polig | |
| Rastermaß | 6.5 mm | |
| Tiefe | 22.2 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
