2086-1106/700-000/997-607 | WAGO

PCB terminal, 6 pole, pitch 3.5 mm, AWG 28-16, 17.5 A, push-in cage clamp, black, 2086-1106/700-000/997-607

Order No.: 44P8127
EAN: 4066966160055
MPN:
2086-1106/700-000/997-607
Series: 2086
WAGO

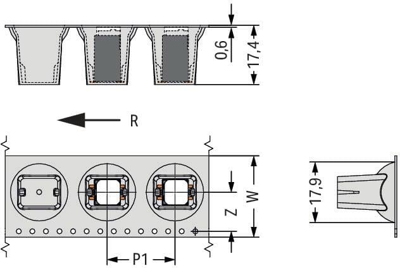

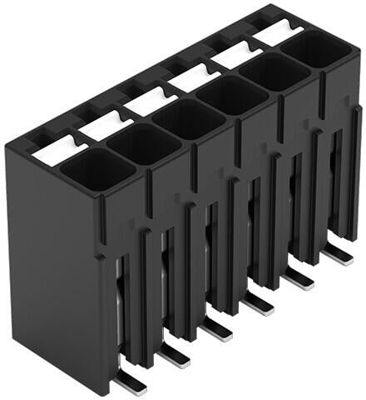

2086-1106/700-000/997-607 WAGO PCB Terminal Blocks Image 1
2086-1106/700-000/997-607 WAGO PCB Terminal Blocks Image 2
2086-1106/700-000/997-607 WAGO PCB Terminal Blocks Image 3
Image may differ
Unit Price (€ / pc.)
1.6184 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1080 pcs.
1.6184 €

PCB terminal block, 2086-1106/700-000/997-607, WAGO

SMD PCB terminal block, push-button, 1.5 mm², Pin spacing 3.5 mm, 6-pole, Push-in, 1,50 mm², black.

Features

  • Ideal for compact device connection, panel feedthrough and tight spaces
  • Push-in CAGE CLAMP termination of solid and ferruled fine-stranded conductors
  • Push-button moves in direction of conductor connection
  • Conductor connection and mating direction parallel or perpendicular to the PCB
Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 28-16
Width 21.7 mm
Colour black
Height 13.85 mm
Cable cross-section 0.14-1.5 mm²
Rated voltage 160 V
Rated current 17.5 A
Pin number 6 pole
Grid 3.5 mm
Depth 7.8 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
