2086-1129/300-000 | WAGO

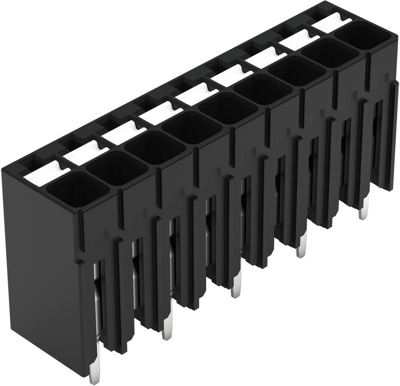

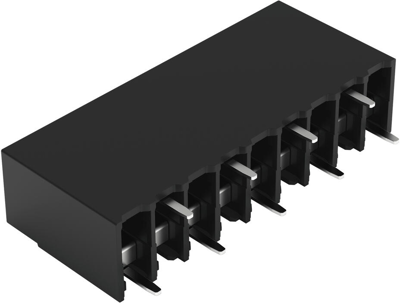

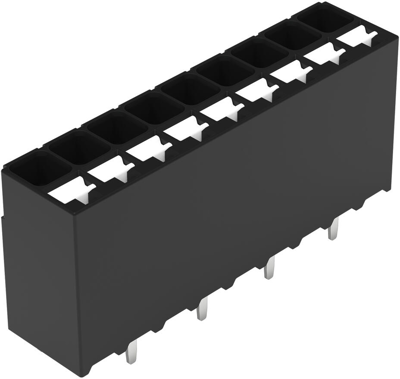

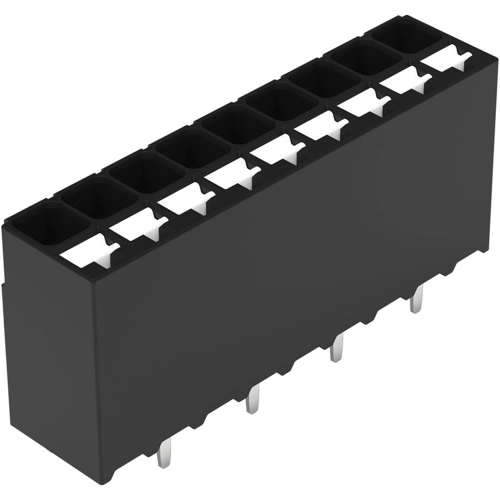

PCB terminal, 9 pole, pitch 3.5 mm, AWG 28-16, 17.5 A, push-in cage clamp, black, 2086-1129/300-000
Unit Price (€ / pc.)
2.4276 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal block, 2086-1129/300-000, WAGO
THR PCB terminal block, push-button, 1.5 mm², Pin spacing 3.5 mm, 9-pole, Push-in, 1,50 mm², black.
Features
- Ideal for compact device connection, panel feedthrough and tight spaces
- Push-in CAGE CLAMP termination of solid and ferruled fine-stranded conductors
- Push-button moves in direction of conductor connection
- Conductor connection and mating direction parallel or perpendicular to the PCB
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-16 | |
| Breite | 32.2 mm | |
| Farbe | schwarz | |
| Höhe | 15.1 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 9-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 7.8 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
