2086-3102/700-650/997-604 | WAGO
PCB terminal, 2 pole, pitch 5 mm, AWG 28-16, 17.5 A, push-in cage clamp, white, 2086-3102/700-650/997-604
Unit Price (€ / pc.)
0.8806 € *
Available: 0 pcs.
Leadtime: On Request **

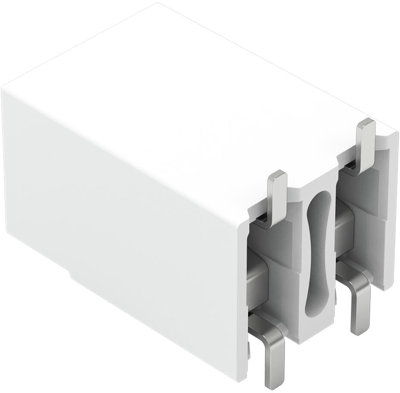

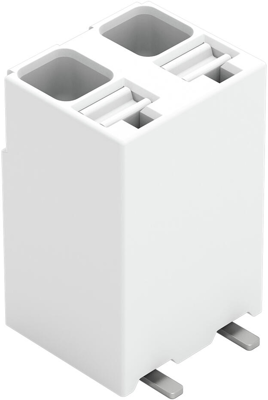

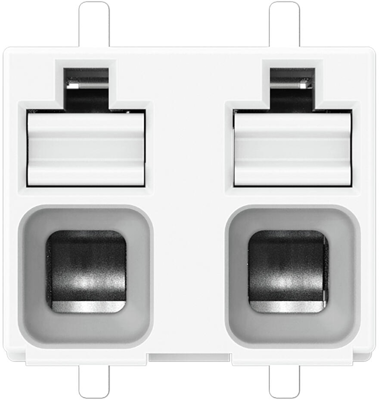

PCB terminal block, 2086-3102/700-650/997-604, WAGO
SMD PCB terminal block, push-button, 1.5 mm², Pin spacing 5 mm, 2-pole, Push-in, 1,50 mm², white.
Features
- Ideal for compact device connection, panel feedthrough and tight spaces
- Push-in CAGE CLAMP termination of solid and ferruled fine-stranded conductors
- Push-button moves in direction of conductor connection
- Conductor connection and mating direction parallel or perpendicular to the PCB

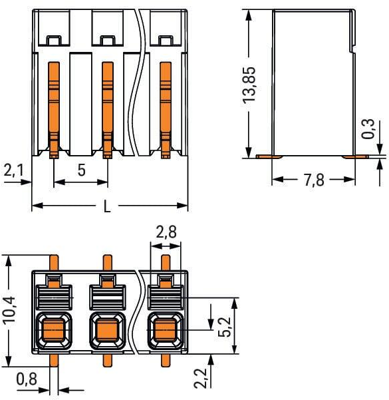

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 28-16 | |
| Width | 9.2 mm | |
| Colour | white | |
| Height | 13.8 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Depth | 7.8 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
