233-202 | WAGO
PCB terminal, 2 pole, pitch 2.5 mm, AWG 28-20, 6 A, cage clamp, gray, 233-202
Unit Price (€ / pc.)
1.1662 € *
Available: 106 pcs.
Leadtime: 1 Week **
Total Price:
1.17 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1662 €
100 pcs.
1.0591 €
500 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale

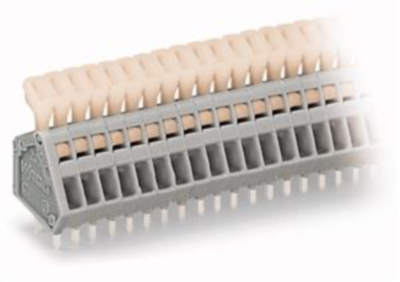

PCB terminal strip, Type Wago
Particularly slim design with terminal width of only 2.5 or 2.54 mm. Cage clamp terminals for single /fine-wire conductors from 0.08 to 0.5 mm² (AWG 28 - 20); Rated voltage to EN: 250 V. Rated current: 6.0 A. Certifications: UL, CSA, KEMA, DEMKO, etc..
With 2.5-mm grid, gray, with pusher.
Type: 233–202, 2–pole

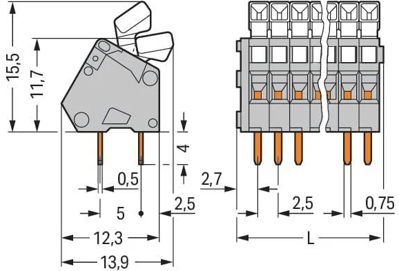

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-20 | |
| Width | 7.3 mm | |
| Colour | gray | |
| Height | 19.5 mm | |
| Contact distance | RM 2.5/5 | |
| Cable cross-section | 0.08-0.5 mm² | |
| Rated voltage | 160 V | |
| Rated current | 6 A | |
| Pin number | 2 pole | |
| Grid | 2.5 mm | |
| Depth | 13.9 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
