233-416 | WAGO
PCB terminal, 16 pole, pitch 2.54 mm, AWG 28-20, 6 A, cage clamp, orange, 233-416
Unit Price (€ / pc.)
6.5093 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.51 € *
Price list
Quantity
Price per unit*
1 pcs.
6.5093 €
10 pcs.
5.9857 €
50 pcs.
5.4502 €
100 pcs.
4.9028 €
*incl. VAT plus shipping costs
**Subject to prior sale

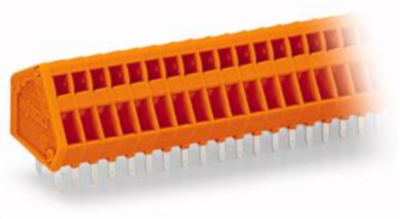

PCB terminal, 233-416, WAGO
PCB terminal block, 0.5 mm², pin spacing: 2.54 mm, 16-pole, CAGE CLAMP, 0.50 mm², orange.
Features
- Compact terminal strips with CAGE CLAMP connection and screwdriver actuation parallel or perpendicular to conductor entry
- Double solder pins for high mechanical stability

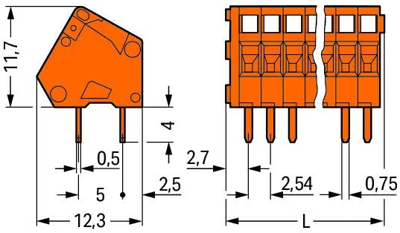

Technical specifications
| Pin number | 16-polig | |
| Grid | 2.54 mm | |
| Cable cross-section | 0,08-0,5 mm² | |
| AWG cross-section | AWG 28-20 | |
| Contact distance | RM 2,54/5 | |
| Rated current | 6 A | |
| Rated voltage | 160 V | |
| Width | 42.94 mm | |
| Height | 15.7 mm | |
| Depth | 12.1 mm | |
| Connection | Käfigklemme | |
| Colour | orange |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
