233-512 | WAGO
PCB terminal, 12 pole, pitch 2.54 mm, AWG 28-20, 6 A, cage clamp, orange, 233-512
Unit Price (€ / pc.)
6.0690 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
6.07 € *
Price list
Quantity
Price per unit*
1 pcs.
6.0690 €
10 pcs.
5.5811 €
50 pcs.
5.0813 €
100 pcs.
4.5696 €
*incl. VAT plus shipping costs
**Subject to prior sale

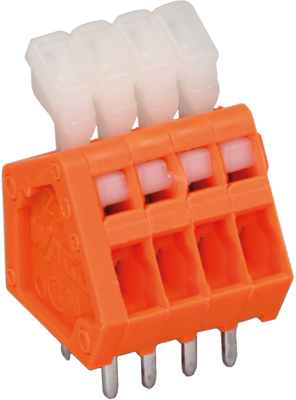

PCB terminal strip, Type Wago
Particularly slim design with terminal width of only 2.5 or 2.54 mm. Cage clamp terminals for single /fine-wire conductors from 0.08 to 0.5 mm² (AWG 28 - 20); Rated voltage to EN: 250 V. Rated current: 6.0 A. Certifications: UL, CSA, KEMA, DEMKO, etc..
With 2.54-mm grid, orange, with pusher.
Type: 233–512, 12–pole
Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-20 | |
| Breite | 32.78 mm | |
| Farbe | orange | |
| Höhe | 19.5 mm | |
| Kontaktabstand | RM 2,54/5 | |
| Leiterquerschnitt | 0,08-0,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 6 A | |
| Polzahl | 12-polig | |
| Rastermaß | 2.54 mm | |
| Tiefe | 13.9 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
