234-502 | WAGO

PCB terminal, 2 pole, pitch 2.54 mm, AWG 28-20, 6 A, cage clamp, orange, 234-502

Order No.: 08H520
EAN: 4044918652100
MPN:
234-502
Series: 234
WAGO
234-502 WAGO PCB Terminal Blocks Image 1

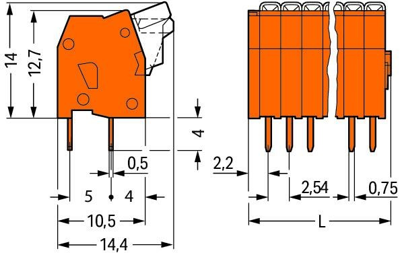

234-502 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available: 110 pcs.
Leadtime: On Request **
Total Price:
1.19 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1900 €
10 pcs.
1.0948 €
50 pcs.
0.9877 €
100 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale

Modular PCB terminal block, Type Wago

Terminal strip for PCBs, with pusher, 2 solder pins/pole, wire entrance at the front, cage clamp terminals, for single-, multi- and fine-wire copper conductors from 0.08 to 0.5 mm², Grid: 2.5 or 2.54 mm. Rated voltage to EN (degree of soiling): 250 V (2). Rated current: 6.0 A. Certifications: UL, CSA, CSM, DEMKO u. a.

2.54-mm grid, orange, type 234-.

Type: 234–502, 2–pole

Technical specifications
Connection cage clamp
AWG cross-section AWG 28-20
Width 7.28 mm
Colour orange
Height 18 mm
Contact distance RM 2.54/5
Cable cross-section 0.08-0.5 mm²
Rated voltage 160 V
Rated current 6 A
Pin number 2 pole
Grid 2.54 mm
Depth 14.4 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
