234-536 | WAGO
PCB terminal, 36 pole, pitch 2.54 mm, AWG 28-20, 6 A, cage clamp, orange, 234-536
Unit Price (€ / pc.)
17.8381 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
17.84 € *
Price list
Quantity
Price per unit*
1 pcs.
17.8381 €
10 pcs.
16.4101 €
50 pcs.
14.9345 €
100 pcs.
13.4351 €
*incl. VAT plus shipping costs
**Subject to prior sale

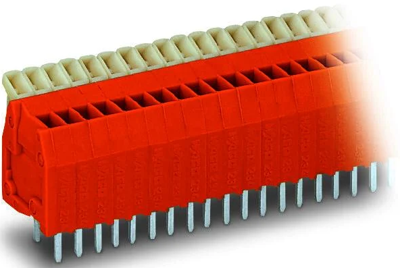

Modular PCB terminal block, Type Wago
Terminal strip for PCBs, with pusher, 2 solder pins/pole, wire entrance at the front, cage clamp terminals, for single-, multi- and fine-wire copper conductors from 0.08 to 0.5 mm², Grid: 2.5 or 2.54 mm. Rated voltage to EN (degree of soiling): 250 V (2). Rated current: 6.0 A. Certifications: UL, CSA, CSM, DEMKO u. a.
2.54-mm grid, orange, type 234-.
Type: 234–536, 36–pole

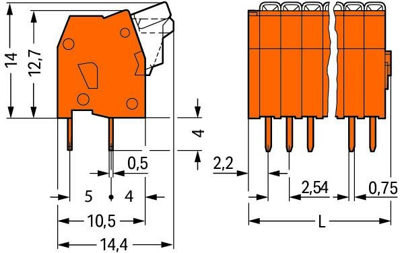

Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-20 | |
| Breite | 93.64 mm | |
| Farbe | orange | |
| Höhe | 18 mm | |
| Kontaktabstand | RM 2,54/5 | |
| Leiterquerschnitt | 0,08-0,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 6 A | |
| Polzahl | 36-polig | |
| Rastermaß | 2.54 mm | |
| Tiefe | 14.4 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
