235-110/330-000 | WAGO
PCB terminal, 10 pole, pitch 3.81 mm, AWG 20-16, 17.5 A, push-in, orange, 235-110/330-000
Unit Price (€ / pc.)
2.8441 € *
Available: 0 pcs.
Leadtime: On Request **

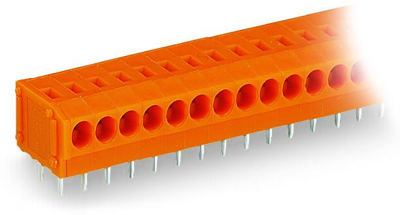

PCB terminal block, 235-110/330-000, WAGO
PCB terminal block, 1.5 mm², Pin spacing 3.81 mm, 10-pole, PUSH WIRE, orange.
Features
- Low-profile terminal strips with screwdriver-actuated PUSH WIRE termination
- Push-in termination of solid conductors
- Double solder pins for high mechanical stability
- Conductor removal via screwdriver

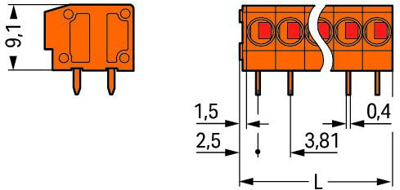

Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-16 | |
| Width | 39.6 mm | |
| Colour | orange | |
| Height | 12.8 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 10 pole | |
| Grid | 3.81 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
