235-404/331-000 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 24-16, 17.5 A, push-in cage clamp, gray, 235-404/331-000
Unit Price (€ / pc.)
1.2019 € *
Available: 53 pcs.
Leadtime: 10 Weeks **
Total Price:
1.20 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2019 €
10 pcs.
1.0829 €
*incl. VAT plus shipping costs
**Subject to prior sale

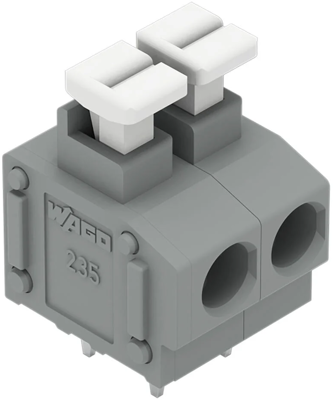

PCB terminal, 235-404/331-000, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 5/5.08 mm, 4-pole, push-in CAGE CLAMP, 1.50 mm², gray.
Features
- PCB terminal strips with push-buttons
- Push-in termination of solid and ferruled conductors
- Convenient termination/removal of fine-stranded conductors via push-buttons
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 21.5 mm | |
| Farbe | grau | |
| Höhe | 19.1 mm | |
| Kontaktabstand | RM 5/5,08 | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 12.5 mm |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
