235-452/331-004 | WAGO

PCB terminal, 2 pole, pitch 5 mm, AWG 24-18, 10 A, push-in, black, 235-452/331-004

Order No.: 44P8709
EAN: 4055144064711
MPN:
235-452/331-004
Series: 235
WAGO
235-452/331-004 WAGO PCB Terminal Blocks Image 1
235-452/331-004 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.7378 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.7378 €

PCB terminal block, 235-452/331-004, WAGO

2-conductor PCB terminal block, push-button, 0.75mm², Pin spacing 5/5.08 mm, 2-pole, PUSH WIRE, black.

Features

  • Low-profile terminal strips with screwdriver-actuated PUSH WIRE termination
  • Double-conductor connection for supply and distribution of signals
  • Ideal for standard, single-conductor signal lines
  • Suitable for push-in termination
  • Double solder pins for high mechanical stability
  • Conductor removal via screwdriver

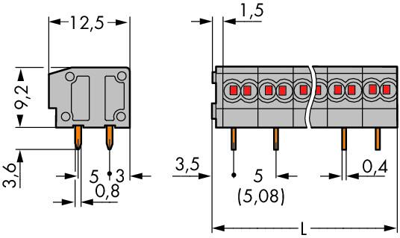

Technical specifications
Connection push-in
AWG cross-section AWG 24-18
Width 11.5 mm
Colour black
Height 12.8 mm
Contact distance RM 5/5.08
Cable cross-section 0.25-0.75 mm²
Rated voltage 320 V
Rated current 10 A
Pin number 2 pole
Grid 5 mm
Depth 12.5 mm
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
