235-453/331-000 | WAGO
PCB terminal, 3 pole, pitch 5 mm, AWG 24-18, 10 A, push-in cage clamp, gray, 235-453/331-000
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.00 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9996 €
10 pcs.
0.8925 €
*incl. VAT plus shipping costs
**Subject to prior sale

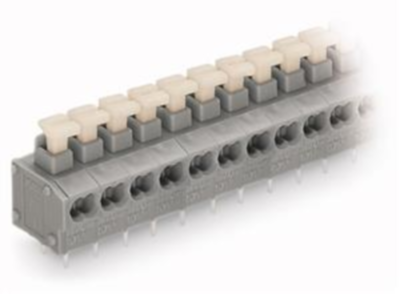

PCB terminal, 235-453/331-000, WAGO
2-conductor PCB terminal block, push-button, 0.75 mm², pin spacing: 5/5.08 mm, 3-pole, PUSH WIRE, 0.75 mm², gray.
Features
- PCB terminal strips with push-buttons
- Push-in termination of solid conductors
- Double-wire connection for commoning signals
- Easy conductor removal via push-button

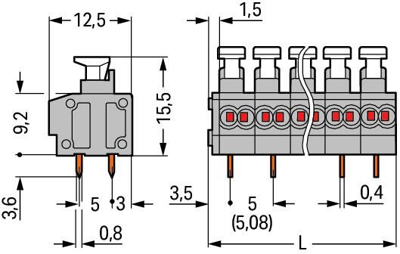

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-18 | |
| Width | 16.5 mm | |
| Colour | gray | |
| Height | 19.1 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.2-0.75 mm² | |
| Rated voltage | 320 V | |
| Rated current | 10 A | |
| Pin number | 3 pole | |
| Grid | 5 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
