235-454/331-000 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 24-18, 10 A, push-in, gray, 235-454/331-000
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Leadtime: On Request **

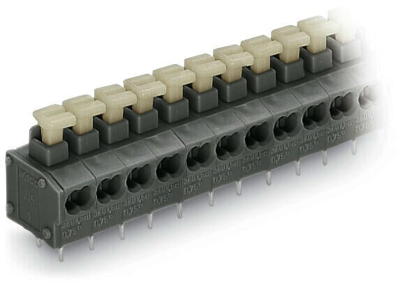

PCB terminal block, 235-454/331-000, WAGO
2-conductor PCB terminal block, push-button, 0.75mm², Pin spacing 5/5.08 mm, 4-pole, PUSH WIRE, gray.
Features
- PCB terminal strips with push-buttons and PUSH WIRE connection
- Double-wire connection for commoning signals
- Push-in termination of solid conductors
- Easy conductor removal via push-button

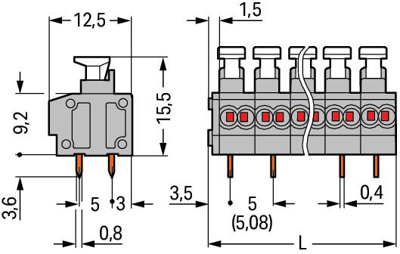

Technical specifications
| Anschluss | Push-in | |
| AWG-Leiterquerschnitt | AWG 24-18 | |
| Breite | 21.5 mm | |
| Farbe | grau | |
| Höhe | 19.1 mm | |
| Kontaktabstand | RM 5/5,08 | |
| Leiterquerschnitt | 0,2-0,75 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 10 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 12.5 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
