235-506/331-000 | WAGO
PCB terminal, 6 pole, pitch 7.5 mm, AWG 24-16, 17.5 A, push-in cage clamp, gray, 235-506/331-000
Unit Price (€ / pc.)
2.1301 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
1.9635 €
50 pcs.
1.7850 €
100 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 235-506/331-000, WAGO

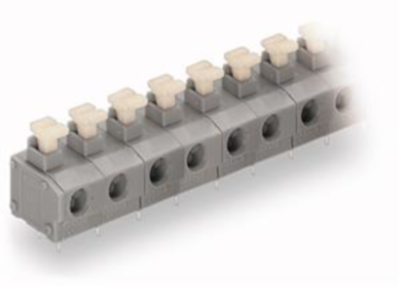

Stackable PCB terminal block, push-button, 1.5 mm², pin spacing: 7.5/7.62 mm, 6-pole, push-in CAGE CLAMP, 1.50 mm², gray.
Features
- PCB terminal strips with push-buttons
- Push-in termination of solid and ferruled conductors
- Convenient termination/removal of fine-stranded conductors via push-buttons

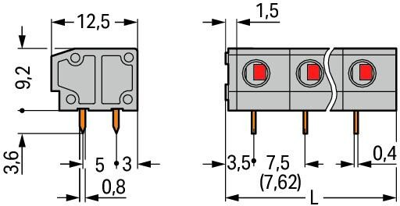

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-16 | |
| Width | 46.5 mm | |
| Colour | gray | |
| Height | 19.1 mm | |
| Contact distance | RM 7.5/7.62 | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 17.5 A | |
| Pin number | 6 pole | |
| Grid | 7.5 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
