235-711/332-000 | WAGO

PCB terminal, 1 pole, pitch 5 mm, AWG 24-18, 10 A, push-in, gray, 235-711/332-000

Order No.: 44P8712
EAN: 4044918831765
MPN:
235-711/332-000
Series: 235
WAGO

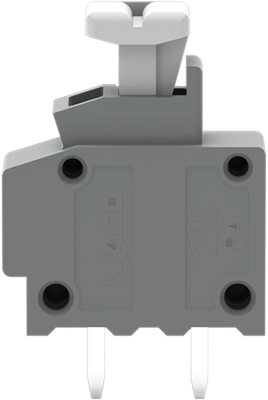

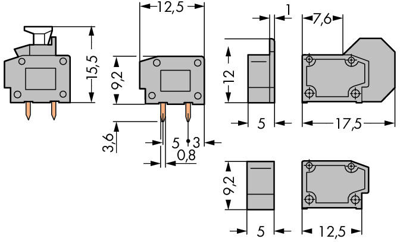

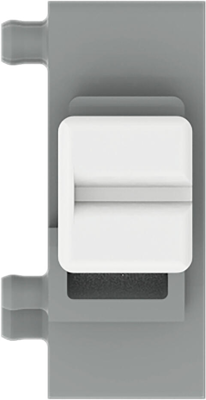

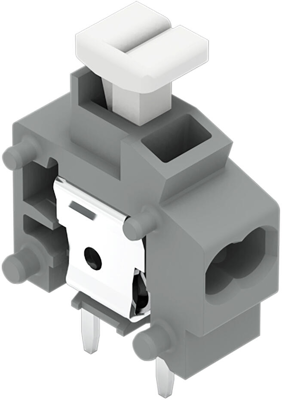

235-711/332-000 WAGO PCB Terminal Blocks Image 1
235-711/332-000 WAGO PCB Terminal Blocks Image 2
235-711/332-000 WAGO PCB Terminal Blocks Image 3
235-711/332-000 WAGO PCB Terminal Blocks Image 4
235-711/332-000 WAGO PCB Terminal Blocks Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.32 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.3213 €

PCB terminal block, 235-711/332-000, WAGO

Stack 2-conductor PCB terminal block, push-button,0.75mm², Pin spacing 5/5.08 mm, 1-pole, test port, gray.

Features

  • Modular PCB terminal blocks with push-buttons and PUSH WIRE connection for custom terminal strip assemblies
  • Double-wire connection for commoning signals
  • Push-in termination of solid conductors
  • Easy conductor removal via push-button
Technical specifications
Connection push-in
AWG cross-section AWG 24-18
Width 6.5 mm
Colour gray
Height 19.1 mm
Contact distance RM 5/5.08
Cable cross-section 0.2-0.75 mm²
Rated voltage 250 V
Rated current 10 A
Pin number 1 pole
Grid 5 mm
Depth 12.5 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
