235-745/331-000 | WAGO
PCB terminal, 1 pole, pitch 5 mm, AWG 20-14, 17.5 A, push-in cage clamp, white, 235-745/331-000
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3689 €
50 pcs.
0.3332 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale

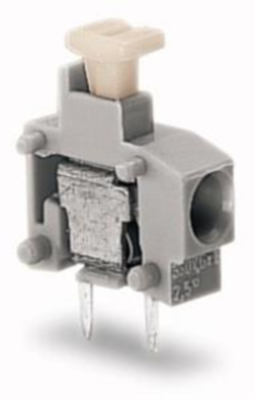

PCB terminal, 235-745/331-000, WAGO
Stackable PCB terminal block, push-button, 1.5 mm², pin spacing: 5/5.08 mm, 1-pole, push-in CAGE CLAMP, 1.50 mm², white.
Features
- Modular PCB terminal blocks with push-buttons for custom terminal strip assemblies
- Push-in termination of solid and ferruled conductors
- Convenient termination/removal of fine-stranded conductors via push-buttons
Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 20-14 | |
| Width | 6.5 mm | |
| Colour | white | |
| Height | 19.1 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.2-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 1 pole | |
| Grid | 5 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
