235-752 | WAGO
PCB terminal, 1 pole, pitch 7.5 mm, AWG 20-14, 24 A, push-in, dark gray, 235-752
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3689 €
50 pcs.
0.3332 €
100 pcs.
0.2975 €
*incl. VAT plus shipping costs
**Subject to prior sale

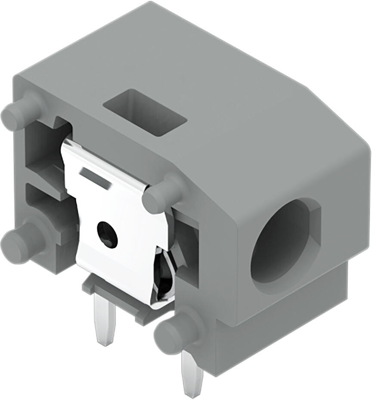

Stackable PCB terminal block, 235-752, Wago
Modular single terminal block 2 solder pins/pole 1-pole grid dimension 7.5/7.62 mm / 0.3 in modular dark grey

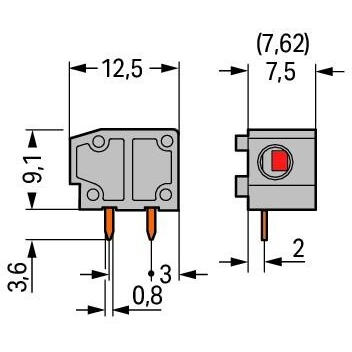

Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 20-14 | |
| Width | 9 mm | |
| Colour | dark gray | |
| Height | 12.8 mm | |
| Contact distance | RM 7.5/7.62 | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Grid | 7.5 mm | |
| Depth | 12.5 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
