235-757 | WAGO
PCB terminal, 1 pole, pitch 7.5 mm, AWG 20-14, 24 A, push-in, light green, 235-757
Unit Price (€ / pc.)
0.357 € *
Available: 0 pcs.
Leadtime: On Request **

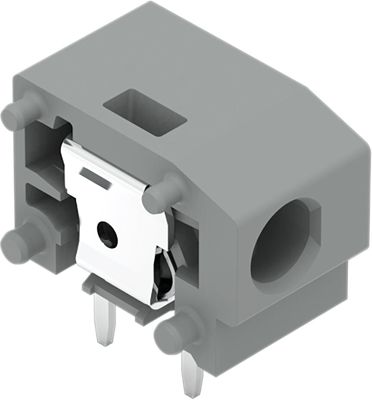

PCB terminal block, 235-757, WAGO
Stackable PCB terminal block, 2.5 mm², Pin spacing 7.5/7.62 mm, 1-pole, PUSH WIRE, light green.
Features
- Low-profile modular PCB terminal blocks with PUSH WIRE connection for custom terminal strip assemblies
- Push-in termination of solid conductors
- Double solder pins for high mechanical stability
- Conductor removal via screwdriver

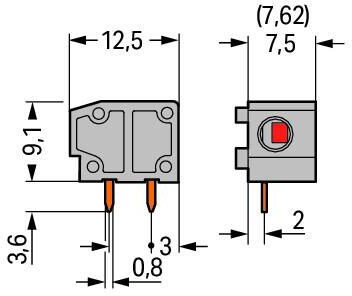

Technical specifications
| Anschluss | Push-in | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Breite | 9 mm | |
| Farbe | hellgrün | |
| Höhe | 12.8 mm | |
| Kontaktabstand | RM 7,5/7,62 | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 12.5 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
