236-404/334-604/997-406 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, black, 236-404/334-604/997-406
Unit Price (€ / pc.)
1.5946 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
THR PCB terminal block, 236-404/334-604/997-406, Wago

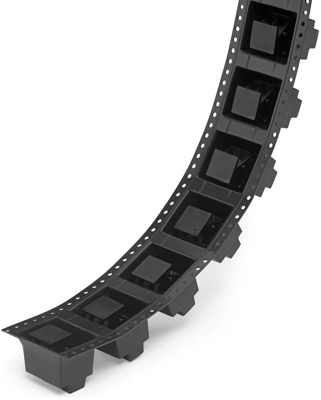

Terminal strips with additional pick-up pad in the harness according to IEC 60286-3 2 solder pins/pole 4-pole grid dimension 5 mm / 0.197 in reflow technology coil diameter 300 mm 170 pieces per coil black

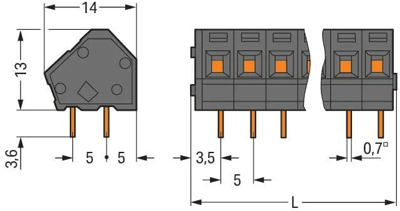

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 22.3 mm | |
| Colour | black | |
| Height | 16.6 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 24 A | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
