236-404 | WAGO

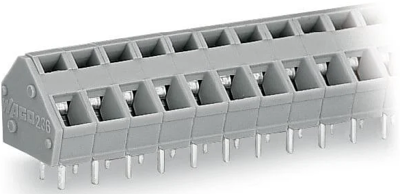

PCB terminal, 4 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, gray, 236-404
Unit Price (€ / pc.)
1.4161 € *
Available: 4 pcs.
Leadtime: On Request **
Total Price:
1.42 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4161 €
10 pcs.
1.2971 €
50 pcs.
1.1781 €
100 pcs.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 236-404, WAGO
PCB terminal block, 2.5 mm², pin spacing: 5/5.08 mm, 4-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options

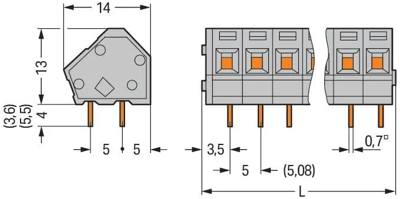

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 22.3 mm | |
| Colour | gray | |
| Height | 17 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 24 A | |
| Pin number | 4 pole | |
| Grid | 5 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
