236-413 | WAGO
PCB terminal, 13 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, gray, 236-413
Unit Price (€ / pc.)
4.0579 € *
Available: 0 pcs.
Leadtime: On Request **

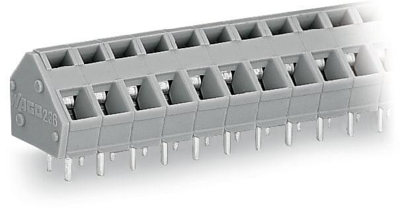

PCB terminal block, 236-413, WAGO
PCB terminal block, 2.5 mm², pitch 5/5.08 mm, 13-pole, commoning, gray.
Features
- Mixed-color PCB terminal strips from factory
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 67.3 mm | |
| Colour | gray | |
| Height | 17 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 24 A | |
| Pin number | 13 pole | |
| Grid | 5 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
