236-508/332-009/999-950 | WAGO
PCB terminal, 8 pole, pitch 7.5 mm, AWG 28-12, 16 A, cage clamp, light gray, 236-508/332-009/999-950
Unit Price (€ / pc.)
5.1646 € *
Available: 0 pcs.
Leadtime: On Request **

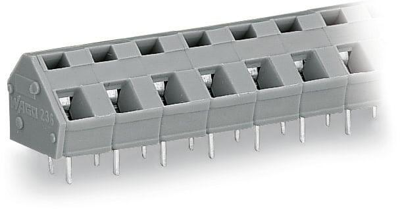

PCB terminal block, 236-508/332-009/999-950, WAGO
PCB terminal block, 2.5 mm², pitch 7.5/7.62 mm, 8-pole, suitable for Ex-e, commoning, gray.
Features
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
Technical specifications
| Anschluss | Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 28-12 | |
| Breite | 62.3 mm | |
| Farbe | lichtgrau | |
| Höhe | 18.5 mm | |
| Kontaktabstand | RM 7,5/7,62 | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennspannung | 275 V | |
| Nennstrom | 16 A | |
| Polzahl | 8-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 14 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
