236-516 | WAGO
PCB terminal, 16 pole, pitch 7.5 mm, AWG 28-12, 24 A, cage clamp, gray, 236-516
Unit Price (€ / pc.)
5.4145 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.41 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4145 €
10 pcs.
4.9861 €
50 pcs.
4.5339 €
100 pcs.
4.0817 €
*incl. VAT plus shipping costs
**Subject to prior sale

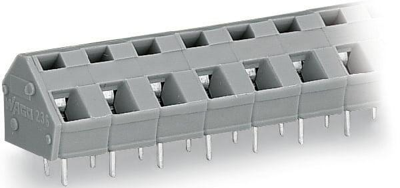

PCB terminal, 236-516, WAGO
PCB terminal block, 2.5 mm², pin spacing: 7.5/7.62 mm, 16-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 122.3 mm | |
| Colour | gray | |
| Height | 17 mm | |
| Contact distance | RM 7.5/7.62 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 630 V | |
| Rated current | 24 A | |
| Pin number | 16 pole | |
| Grid | 7.5 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
