236-524/000-009/999-950 | WAGO
PCB terminal, 24 pole, pitch 7.5 mm, AWG 20-14, 16 A, cage clamp, light gray, 236-524/000-009/999-950
Unit Price (€ / pc.)
14.0182 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
14.02 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0182 €
10 pcs.
12.8996 €
50 pcs.
11.7334 €
100 pcs.
10.5672 €
*incl. VAT plus shipping costs
**Subject to prior sale

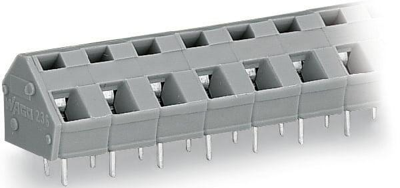

PCB terminal, 236-524/000-009/999-950, WAGO
PCB terminal block, 2.5 mm², pin spacing: 7.5/7.62 mm, 24-pole, suitable for Ex-e applications, CAGE CLAMP, 2.50 mm², light gray.
Features
- PCB terminal strips with CAGE CLAMP connection, screwdriver actuation parallel or perpendicular to conductor entry
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 20-14 | |
| Width | 182.3 mm | |
| Colour | light gray | |
| Height | 17 mm | |
| Contact distance | RM 7.5/7.62 | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated voltage | 275 V | |
| Rated current | 16 A | |
| Pin number | 24 pole | |
| Grid | 7.5 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
