236-524/332-009/999-950 | WAGO
PCB terminal, 24 pole, pitch 7.5 mm, AWG 28-12, 16 A, cage clamp, light gray, 236-524/332-009/999-950
Unit Price (€ / pc.)
14.1967 € *
Available: 0 pcs.
Leadtime: On Request **

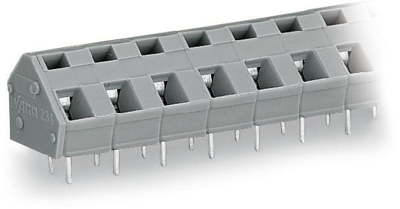

PCB terminal block, 236-524/332-009/999-950, WAGO
PCB terminal block, 2.5 mm², pitch 7.5/7.62 mm, 24-pole, suitable for Ex-e, commoning, gray.
Features
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 182.3 mm | |
| Colour | light gray | |
| Height | 18.5 mm | |
| Contact distance | RM 7.5/7.62 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 275 V | |
| Rated current | 16 A | |
| Pin number | 24 pole | |
| Grid | 7.5 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
