236-603/000-004 | WAGO
PCB terminal, 3 pole, pitch 10 mm, AWG 28-12, 24 A, cage clamp, black, 236-603/000-004
Unit Price (€ / pc.)
1.3447 € *
Available: 0 pcs.
Leadtime: On Request **

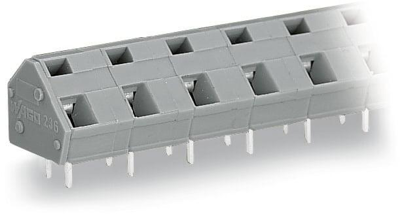

PCB terminal block, 236-603/000-004, WAGO
PCB terminal block, 2.5 mm², pitch 10/10.16 mm, 3-pole, commoning, black.
Features
- Mixed-color PCB terminal strips from factory
- Operating tools for factory wiring
- 45° conductor entry angle permits a wide range of applications and wiring options
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart

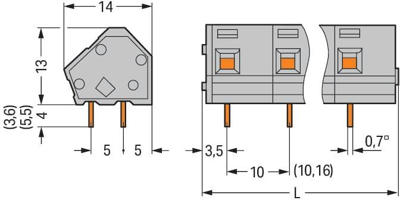

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 32.3 mm | |
| Colour | black | |
| Height | 17 mm | |
| Contact distance | RM 10/10.16 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 1000 V | |
| Rated current | 24 A | |
| Pin number | 3 pole | |
| Grid | 10 mm | |
| Depth | 14 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
