237-132 | WAGO

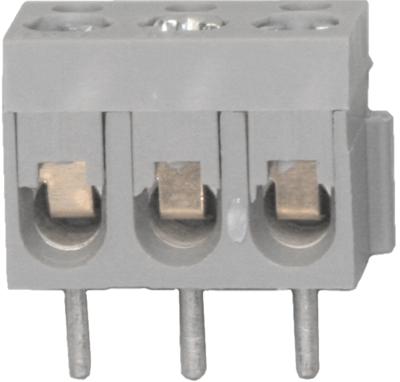

PCB terminal, 2 pole, pitch 5 mm, AWG 20-14, 16 A, screw connection, gray, 237-132
Unit Price (€ / pc.)
1.0353 € *
Available: 111 pcs.
Leadtime: 2 Weeks **
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
100 pcs.
0.9401 €
500 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal strip, Type Wago
Stackable, for PCBs, screw terminals with wire protection for conductor cross-sections from 0.5 to 2.5 mm², additional test tap for 2.0 mm plug pins; Rated current: 16 A. Color: gray. Certifications: UL, CSA, CSM, KEMA u. a.
With 5.08 mm grid.
Rated voltage to EN (degree of soiling): 250 V (2).
Type: 237–132, 2–pole
Technical specifications
| Connection | screw connection | |
| AWG cross-section | AWG 20-14 | |
| Width | 5.08 mm | |
| Colour | gray | |
| Height | 11 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated voltage | 250 V | |
| Rated current | 16 A | |
| Pin number | 2 pole | |
| Grid | 5 mm | |
| Depth | 9 mm |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
