250-117/000-012 | WAGO
PCB terminal, 17 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, orange, 250-117/000-012
Unit Price (€ / pc.)
4.1769 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

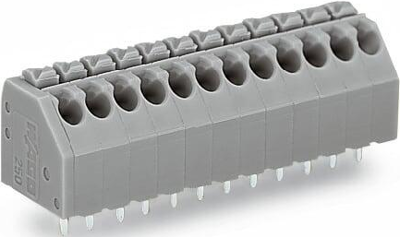

PCB terminal block, 250-117/000-012, WAGO
PCB terminal block, push-button, 1.5 mm², Pin spacing 3.5 mm, 17-pole, Push-in CAGE CLAMP, 1,50 mm², orange.
Features
- Compact terminal strips with push-buttons
- Push-in terminations of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 61 mm | |
| Farbe | orange | |
| Höhe | 16.7 mm | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 8 A | |
| Polzahl | 17-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 12 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
