250-1421 | WAGO
PCB terminal, 21 pole, pitch 2.54 mm, AWG 24-20, 4 A, push-in cage clamp, gray, 250-1421
Unit Price (€ / pc.)
5.1051 € *
Available: 70 pcs.
Leadtime: 4 Weeks **
Total Price:
5.11 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1051 €
10 pcs.
4.7005 €
50 pcs.
4.2721 €
100 pcs.
3.8437 €
*incl. VAT plus shipping costs
**Subject to prior sale

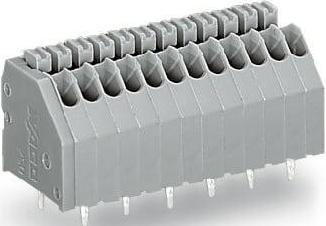

PCB terminal block, 250-1421, WAGO
PCB terminal block, push-button, 0.5 mm², Pin spacing 2.54 mm, 21-pole, Push-in CAGE CLAMP, 0,50 mm², gray.
Features
- Compact PCB terminal strips with push-buttons
- Push-in termination of solid conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring
Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Breite | 54.84 mm | |
| Farbe | grau | |
| Höhe | 16.7 mm | |
| Leiterquerschnitt | 0,14-0,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 4 A | |
| Polzahl | 21-polig | |
| Rastermaß | 2.54 mm | |
| Tiefe | 12 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
