250-202/353-604/997-404 | WAGO
PCB terminal, 2 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, black, 250-202/353-604/997-404
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9401 €
100 pcs.
0.8449 €
*incl. VAT plus shipping costs
**Subject to prior sale
THR PCB terminal block, 250-202/353-604/997-404, Wago

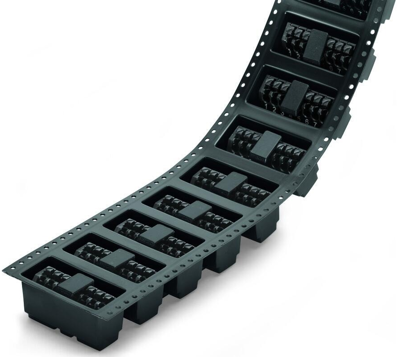

Terminal strips in belt acc. to IEC 60286-3 with actuating pusher 1 solder pin/pole offset 2-pole Spacing 3.5 mm / 0.138 in Coil diameter 300 mm with test opening for test pin up to Ø 1.3 mm Reflow technology black

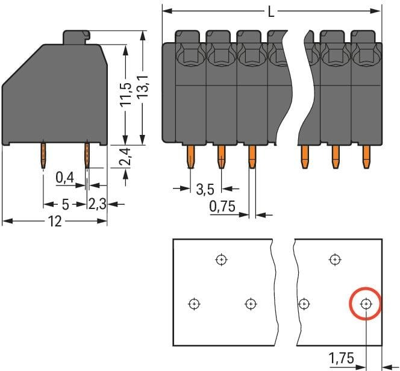

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 8.5 mm | |
| Farbe | schwarz | |
| Höhe | 15.5 mm | |
| Kontaktabstand | RM 5/3,5 | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 8 A | |
| Polzahl | 2-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 12 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
