250-204/353-604/997-405 | WAGO
PCB terminal, 4 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, black, 250-204/353-604/997-405
Unit Price (€ / pc.)
1.3328 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
PCB terminal, 250-204/353-604/997-405, WAGO

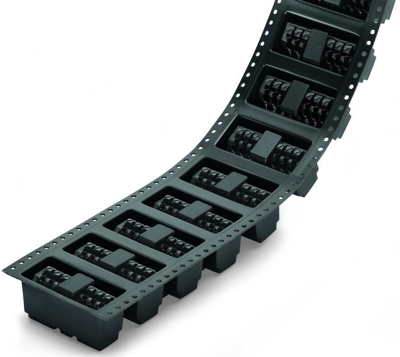

THR PCB terminal block, push-button, 1.5 mm², pin spacing: 3.5 mm, 4-pole, push-in CAGE CLAMP, 1.50 mm², black.
Features
- Cost-effective integration of high-temperature resistant THR terminal strips into SMT reflow soldering processes
- Push-in termination of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

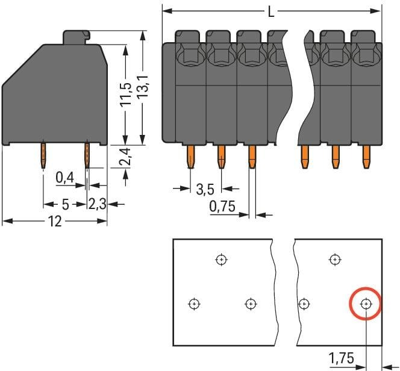

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-16 | |
| Breite | 15.5 mm | |
| Farbe | schwarz | |
| Höhe | 15.5 mm | |
| Kontaktabstand | RM 5/3,5 | |
| Leiterquerschnitt | 0,2-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 8 A | |
| Polzahl | 4-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 12 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
