250-206 | WAGO

PCB terminal, 6 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, gray, 250-206

Order No.: 09H3716
EAN: 4044918648486
MPN:
250-206
Series: 0250
WAGO

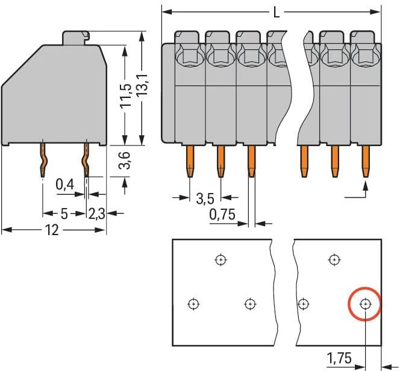

250-206 WAGO PCB Terminal Blocks Image 1

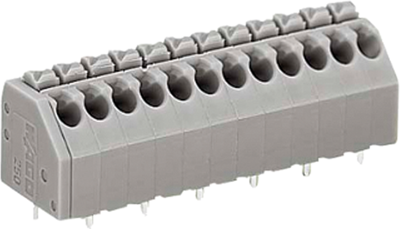

250-206 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.6065 € *
Available: 36 pcs.
Leadtime: On Request **
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6065 €
10 pcs.
1.4875 €
50 pcs.
1.3447 €
100 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal strip, Type Wago

Single-wire terminal block for PCBs, with pusher, 1 solder pin/pole, staggered, push-wire termination, angled wiring; Color: gray. Certifications: UL, CSA, CCA u. a.

With 3.5 mm grid.

For single-wire and fine-wire conductors with cross-sections from 0.5 to 1.5 mm², Rated voltage to EN (degree of soiling): 400 V (2). Rated current: 2.0 A.

Type: 250–206, 6–pole

Technical specifications
Connection push-in cage clamp
AWG cross-section AWG 24-16
Width 22.5 mm
Colour gray
Height 16.7 mm
Contact distance RM 5/3.5
Cable cross-section 0.2-1.5 mm²
Rated voltage 320 V
Rated current 8 A
Pin number 6 pole
Grid 3.5 mm
Depth 12 mm
Logistics
Country of origin CH
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
