250-211 | WAGO
PCB terminal, 11 pole, pitch 3.5 mm, AWG 24-16, 8 A, push-in cage clamp, gray, 250-211
Unit Price (€ / pc.)
2.5109 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.51 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5109 €
10 pcs.
2.2610 €
*incl. VAT plus shipping costs
**Subject to prior sale

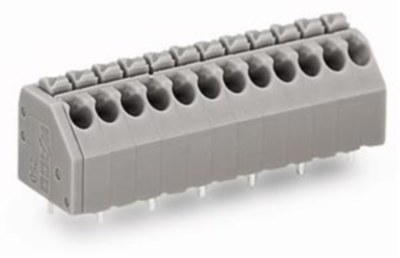

PCB terminal, 250-211, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 3.5 mm, 11-pole, push-in CAGE CLAMP, 1.50 mm², gray.
Features
- Compact terminal strips with push-buttons
- Push-in terminations of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

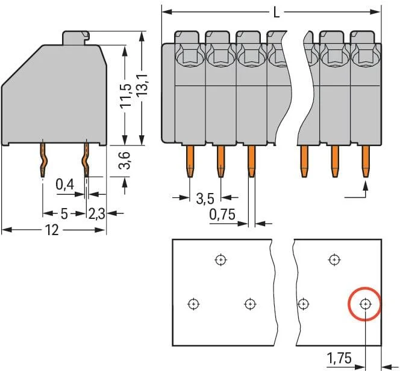

Technical specifications
| Pin number | 11-polig | |
| Grid | 3.5 mm | |
| Cable cross-section | 0,2-1,5 mm² | |
| AWG cross-section | AWG 24-16 | |
| Contact distance | RM 5/3,5 | |
| Rated current | 8 A | |
| Rated voltage | 320 V | |
| Width | 40 mm | |
| Height | 16.7 mm | |
| Depth | 12 mm | |
| Connection | Push-in Käfigklemme | |
| Colour | grau |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
