250-315 | WAGO
PCB terminal, 15 pole, pitch 2.5 mm, AWG 24-20, 4 A, push-in cage clamp, gray, 250-315
Unit Price (€ / pc.)
3.3915 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.0345 €
*incl. VAT plus shipping costs
**Subject to prior sale

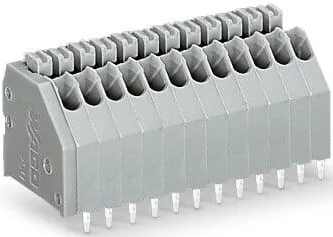

PCB terminal, 250-315, WAGO
PCB terminal block, push-button, 0.5 mm², pin spacing: 2.5 mm, 15-pole, push-in CAGE CLAMP, 0.50 mm², gray.
Features
- Compact terminal strips with push-buttons
- Push-in terminations of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

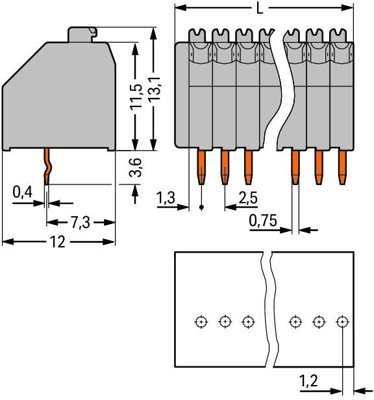

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 24-20 | |
| Width | 36.5 mm | |
| Colour | gray | |
| Height | 16.7 mm | |
| Cable cross-section | 0.14-0.5 mm² | |
| Rated voltage | 160 V | |
| Rated current | 4 A | |
| Pin number | 15 pole | |
| Grid | 2.5 mm | |
| Depth | 12 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
