250-405/000-006 | WAGO
PCB terminal, 5 pole, pitch 2.5 mm, AWG 24-20, 2 A, push-in cage clamp, blue, 250-405/000-006
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.23 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2257 €
10 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale

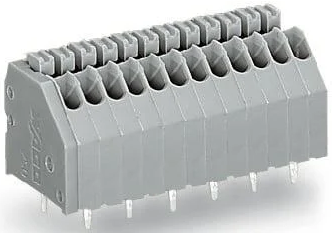

PCB terminal, 250-405/000-006, WAGO
PCB terminal block, push-button, 0.5 mm², pin spacing: 2.5 mm, 5-pole, push-in CAGE CLAMP, 0.50 mm², blue.
Features
- Compact terminal strips with push-buttons
- Push-in terminations of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

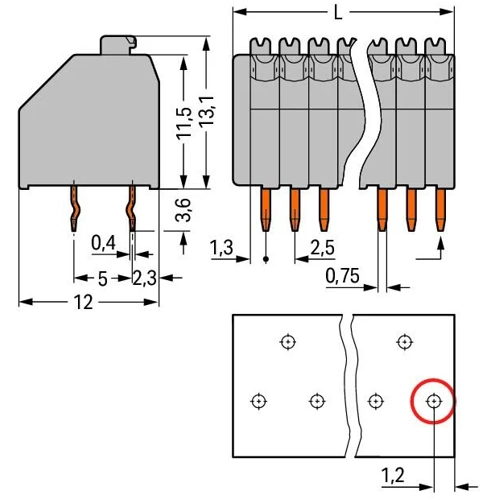

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 24-20 | |
| Breite | 14 mm | |
| Farbe | blau | |
| Höhe | 16.7 mm | |
| Kontaktabstand | RM 5/2,5 | |
| Leiterquerschnitt | 0,14-0,5 mm² | |
| Nennspannung | 160 V | |
| Nennstrom | 2 A | |
| Polzahl | 5-polig | |
| Rastermaß | 2.5 mm | |
| Tiefe | 12 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
