250-507/000-012 | WAGO
PCB terminal, 7 pole, pitch 5 mm, AWG 20-14, 17.5 A, push-in cage clamp, orange, 250-507/000-012
Unit Price (€ / pc.)
2.4038 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

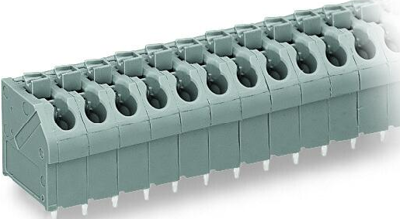

PCB terminal block, 250-507/000-012, WAGO
PCB terminal block, push-button, 1.5 mm², Pin spacing 5 mm, 7-pole, Push-in CAGE CLAMP, 1,50 mm², orange.
Features
- Compact PCB terminal strips with push-buttons
- Push-in termination of solid conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

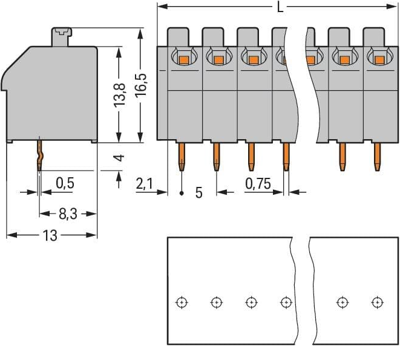

Technical specifications
| Connection | push-in cage clamp | |
| AWG cross-section | AWG 20-14 | |
| Width | 36.5 mm | |
| Colour | orange | |
| Height | 20.5 mm | |
| Cable cross-section | 0.5-1.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Pin number | 7 pole | |
| Grid | 5 mm | |
| Depth | 13 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
