250-603/000-006 | WAGO
PCB terminal, 3 pole, pitch 7.5 mm, AWG 20-14, 17.5 A, push-in cage clamp, gray, 250-603/000-006
Unit Price (€ / pc.)
1.2376 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.24 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2376 €
10 pcs.
1.1424 €
50 pcs.
1.0353 €
100 pcs.
0.9282 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal, 250-603/000-006, WAGO
PCB terminal block, push-button, 1.5 mm², pin spacing: 7.5 mm, 3-pole, push-in cage clamp, 1.50 mm², blue.
Features
- Compact PCB terminal strips with push-buttons
- Push-in termination of solid conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

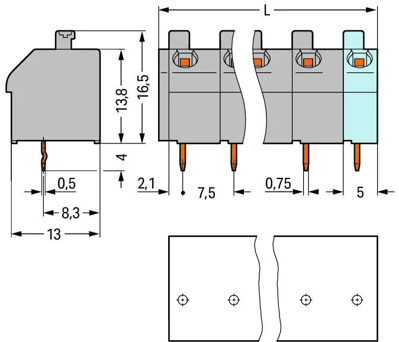

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Breite | 21.5 mm | |
| Farbe | grau | |
| Höhe | 20.5 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennspannung | 630 V | |
| Nennstrom | 17.5 A | |
| Polzahl | 3-polig | |
| Rastermaß | 7.5 mm | |
| Tiefe | 13 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
