250-702 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 20-14, 10 A, push-in cage clamp, gray, 250-702
Unit Price (€ / pc.)
1.6660 € *
Available: 56 pcs.
Leadtime: 4 Weeks **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
10 pcs.
1.4994 €
*incl. VAT plus shipping costs
**Subject to prior sale

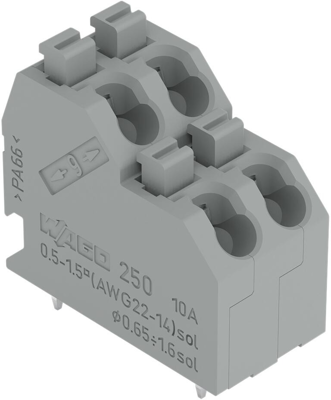

PCB terminal, 250-702, WAGO
Double-deck PCB terminal block, push-button, 1.5 mm², pin spacing: 5 mm, 4-pole, push-in cage clamp, 1.50 mm², agate gray.
Features
- Space-saving, double-deck terminal strips with push-buttons
- Push-in termination of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

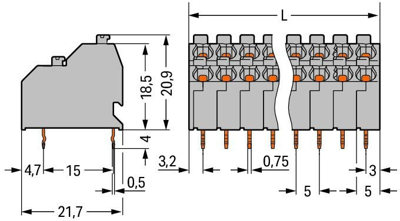

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 20-14 | |
| Breite | 11.2 mm | |
| Farbe | grau | |
| Höhe | 24.9 mm | |
| Kontaktabstand | RM 5/15 | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 10 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 21.7 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
