250-706/000-023 | WAGO
PCB terminal, 12 pole, pitch 5 mm, AWG 20-16, 10 A, push-in cage clamp, green, 250-706/000-023
Unit Price (€ / pc.)
5.7596 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal block, 250-706/000-023, WAGO
Double-deck PCB terminal block, push-button, 1.5 mm², Pin spacing 5 mm, 12-pole, Push-in CAGE CLAMP, 1,50 mm², green.
Features
- Space-saving, double-deck terminal strips with push-buttons
- Push-in termination of solid and ferruled conductors
- Termination/removal of fine-stranded conductors via push-buttons
- 45° conductor entry angle provides easy, space-saving wiring

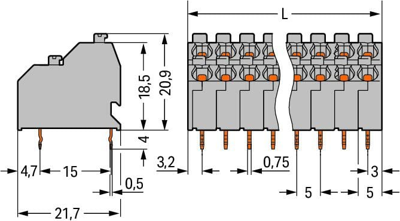

Technical specifications
| Anschluss | Push-in Käfigklemme | |
| AWG-Leiterquerschnitt | AWG 20-16 | |
| Breite | 31.2 mm | |
| Farbe | grün | |
| Höhe | 24.9 mm | |
| Leiterquerschnitt | 0,5-1,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 10 A | |
| Polzahl | 12-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 21.7 mm |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
