252-102 | WAGO
PCB terminal, 2 pole, pitch 3.5 mm, AWG 26-20, 2 A, push-in, gray, 252-102
Unit Price (€ / pc.)
0.6426 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal, 252-102, WAGO
2-conductor female connector, push-button, PUSH WIRE, 0.8 mm Ø, pin spacing: 3.5 mm, 2-pole, for solder pin strip, 0.50 mm², gray.
Features
- 2-conductor female connector with PUSH WIRE connection and push-buttons
- Push-in termination of solid conductors – conductor removal via push-buttons
- Double entries for power supply and distribution
- Quick and easy PCB replacement
- Loop connection is retained, even when unmated

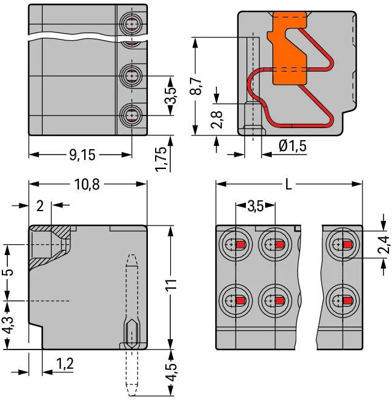

Technical specifications
| Anschluss | Push-in | |
| AWG-Leiterquerschnitt | AWG 26-20 | |
| Breite | 7 mm | |
| Farbe | grau | |
| Höhe | 11 mm | |
| Leiterquerschnitt | 0,14-0,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 2 A | |
| Polzahl | 2-polig | |
| Rastermaß | 3.5 mm | |
| Tiefe | 10.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
