254-374 | WAGO
PCB terminal, 24 pole, pitch 10 mm, AWG 22-18, 10 A, push-in, gray, 254-374
Unit Price (€ / pc.)
10.6386 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

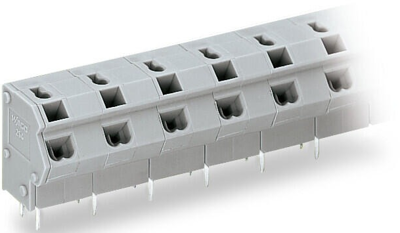

PCB terminal, 254-374, WAGO
2-conductor PCB terminal block, 0.75 mm², pin spacing: 10/10.16 mm, 24-pole, PUSH WIRE, 0.75 mm², gray.
Features
- Terminal strips with screwdriver-actuated PUSH WIRE termination
- Push-in termination of solid and ferruled, fine-stranded conductors
- Test socket for 2 mm Ø test plug
Technical specifications
| Pin number | 24-polig | |
| Grid | 10 mm | |
| Cable cross-section | 0,25-0,75 mm² | |
| AWG cross-section | AWG 22-18 | |
| Contact distance | RM 10/10,16 | |
| Rated current | 10 A | |
| Rated voltage | 630 V | |
| Width | 241.5 mm | |
| Height | 20.5 mm | |
| Depth | 13.5 mm | |
| Connection | Push-in | |
| Colour | grau |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
