254-454/000-004 | WAGO
PCB terminal, 4 pole, pitch 5 mm, AWG 20-12, 24 A, push-in, black, 254-454/000-004
Unit Price (€ / pc.)
1.6184 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
PCB terminal block, 254-454/000-004, WAGO
PCB terminal block, 2.5 mm², Pin spacing 5/5.08 mm, 4-pole, PUSH WIRE, 2.5 mm², black.
Features
- PCB terminal strips with screwdriver-actuated PUSH WIRE termination
- Push-in termination of solid and ferruled, fine-stranded conductors
- Test socket for 2 mm Ø test plug
- Save space on the PCB, just 8.9 mm deep

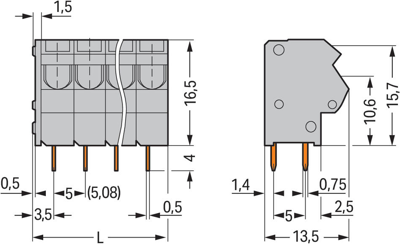

Technical specifications
| Anschluss | Push-in | |
| AWG-Leiterquerschnitt | AWG 20-12 | |
| Breite | 21.5 mm | |
| Farbe | schwarz | |
| Höhe | 19.7 mm | |
| Kontaktabstand | RM 5/5,08 | |
| Leiterquerschnitt | 0,5-2,5 mm² | |
| Nennspannung | 320 V | |
| Nennstrom | 24 A | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Tiefe | 13.5 mm |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
