254-801 | WAGO
PCB terminal, 1 pole, pitch 5 mm, AWG 22-18, 10 A, push-in, gray, 254-801
Unit Price (€ / pc.)
0.4403 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

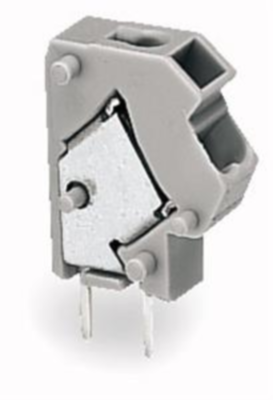

PCB terminal, 254-801, WAGO
Stackable 2-conductor PCB terminal block, 0.75 mm², pin spacing: 5/5.08 mm, 1-pole, PUSH WIRE, 0.75 mm², gray.
Features
- Modular PCB terminal blocks with PUSH WIRE connection and screwdriver actuation for custom terminal strip assemblies
- Push-in termination of solid and ferruled, fine-stranded conductors
- Test socket for 2 mm Ø test plug

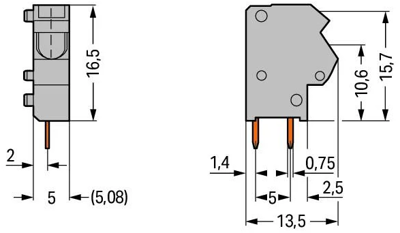

Technical specifications
| Connection | push-in | |
| AWG cross-section | AWG 22-18 | |
| Width | 6.7 mm | |
| Colour | gray | |
| Height | 20.5 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.25-0.75 mm² | |
| Rated voltage | 320 V | |
| Rated current | 10 A | |
| Pin number | 1 pole | |
| Grid | 5 mm | |
| Depth | 13.5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
