254-849 | WAGO

PCB terminal, 1 pole, pitch 5 mm, AWG 20-12, 24 A, push-in terminal connection, black, 254-849

Order No.: 44P9920
EAN: 4055143741675
MPN:
254-849
Series: 254
WAGO

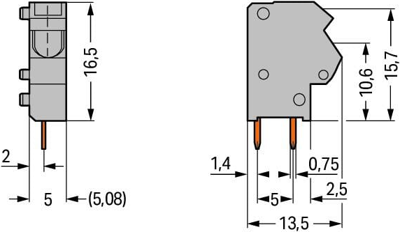

254-849 WAGO PCB Terminal Blocks Image 1

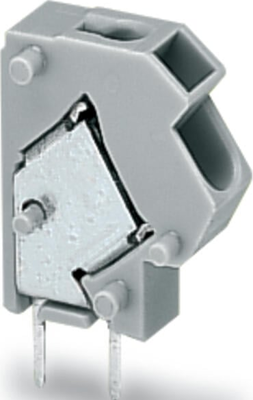

254-849 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
0.40 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4046 €
10 pcs.
0.3927 €
50 pcs.
0.3689 €
*incl. VAT plus shipping costs
**Subject to prior sale

PCB terminal block, 254-849, WAGO

Stackable PCB terminal block, 2.5 mm², Pin spacing 5/5.08 mm, 1-pole, PUSH WIRE, 2.50 mm², black.

Features

  • Modular PCB terminal blocks with PUSH WIRE connection and screwdriver actuation for custom terminal strip assemblies
  • Push-in termination of solid and ferruled conductors
  • Test socket for 2 mm Ø test plug
  • Save space on the PCB
Technical specifications
Connection push-in terminal connection
AWG cross-section AWG 20-12
Width 6.7 mm
Colour black
Height 19.7 mm
Contact distance RM 5/5.08
Cable cross-section 0.5-2.5 mm²
Rated voltage 320 V
Rated current 24 A
Pin number 1 pole
Grid 5 mm
Depth 13.5 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
