254-866 | WAGO
PCB terminal, 1 pole, pitch 10 mm, AWG 20-12, 24 A, push-in, orange, 254-866
Unit Price (€ / pc.)
0.5236 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

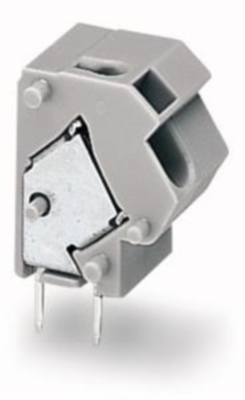

Stackable PCB terminal block, 254-866, Wago
Modular single terminal block 2 solder pins/pole 1-pole Spacing 10/10.16 mm / 0.4 in orange

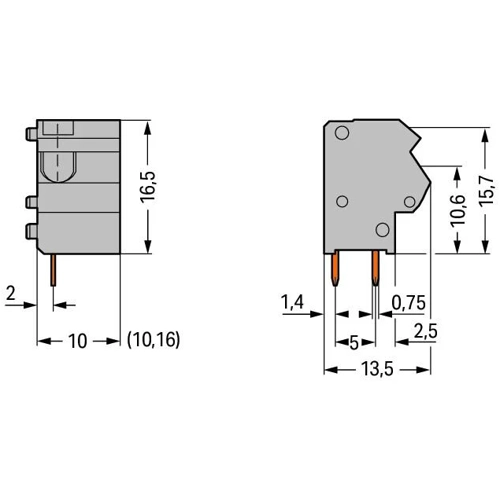

Technical specifications
| Pin number | 1-polig | |
| Grid | 10 mm | |
| Cable cross-section | 0,5-2,5 mm² | |
| AWG cross-section | AWG 20-12 | |
| Contact distance | RM 10/10,16 | |
| Rated current | 24 A | |
| Rated voltage | 1 kV | |
| Width | 11.7 mm | |
| Height | 19.7 mm | |
| Depth | 13.5 mm | |
| Connection | Push-in | |
| Colour | orange |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
