255-509 | WAGO
PCB terminal, 9 pole, pitch 7.5 mm, AWG 28-12, 24 A, cage clamp, gray, 255-509
Unit Price (€ / pc.)
3.5343 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
3.53 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5343 €
10 pcs.
3.1892 €
*incl. VAT plus shipping costs
**Subject to prior sale

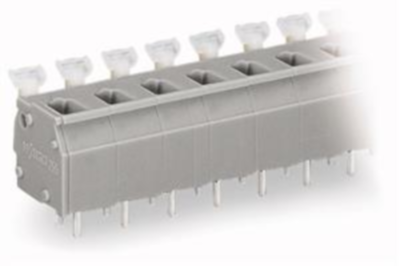

PCB terminal, 255-509, WAGO
PCB terminal block, push-button, 2.5 mm², pin spacing: 7.5/7.62 mm, 9-pole, CAGE CLAMP, 2.50 mm², gray.
Features
- PCB terminal blocks with push-buttons and CAGE CLAMP connection
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Convenient, tool-free operation

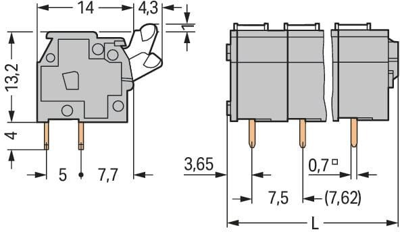

Technical specifications
| Pin number | 9-polig | |
| Grid | 7.5 mm | |
| Cable cross-section | 0,08-2,5 mm² | |
| AWG cross-section | AWG 28-12 | |
| Contact distance | RM 7,5/7,62 | |
| Rated current | 24 A | |
| Rated voltage | 630 V | |
| Width | 70.4 mm | |
| Height | 18.2 mm | |
| Depth | 18.3 mm | |
| Connection | Käfigklemme | |
| Colour | grau |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
