255-763/999-950 | WAGO

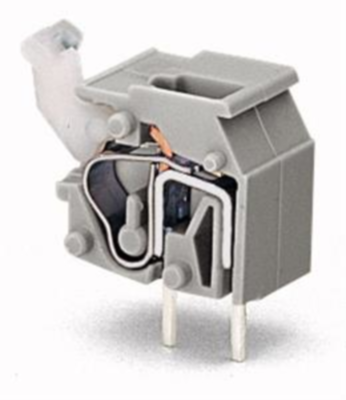

PCB terminal, 1 pole, pitch 10 mm, AWG 28-12, 16 A, cage clamp, light gray, 255-763/999-950
Unit Price (€ / pc.)
0.9163 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.92 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9163 €
10 pcs.
0.8449 €
50 pcs.
0.7616 €
100 pcs.
0.6902 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stackable PCB terminal block, 255-763/999-950, Wago
Modular single terminal block with actuation pushbutton Ex e II 2 solder pins/pole 1-pole suitable for applications Ex e II grid dimension 10/10.16 mm / 0.4 in light gray

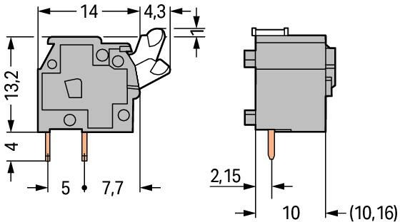

Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 12.8 mm | |
| Colour | light gray | |
| Height | 18.2 mm | |
| Contact distance | RM 10/10.16 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 440 V | |
| Rated current | 16 A | |
| Pin number | 1 pole | |
| Grid | 10 mm | |
| Depth | 18.3 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
