256-748 | WAGO
PCB terminal, 1 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, black, 256-748
Unit Price (€ / pc.)
0.4046 € *
Available: 0 pcs.
Leadtime: On Request **

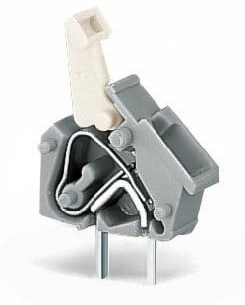

Stackable PCB terminal block, 256-748, WAGO
Stackable PCB terminal block, push-button, 2.5 mm², Pin spacing 5/5.08 mm, 1-pole, Cage clamp, commoning option, 2.50 mm², black.
Features
- Convenient, tool-free operation
- Ideal for in-the-field wiring thanks to simplified push-button actuation
- Set to metric or inch pin spacing by compressing PCB terminal strips or pulling them apart
Technical specifications
| Connection | cage clamp | |
| AWG cross-section | AWG 28-12 | |
| Width | 7.8 mm | |
| Colour | black | |
| Height | 22.2 mm | |
| Contact distance | RM 5/5.08 | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated voltage | 320 V | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Grid | 5 mm | |
| Depth | 17.6 mm |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
