257-404/333-000 | WAGO

PCB terminal, 4 pole, pitch 5 mm, AWG 28-12, 24 A, cage clamp, gray, 257-404/333-000

Order No.: 44P9496
EAN: 4044918678285
MPN:
257-404/333-000
Series: 257
WAGO

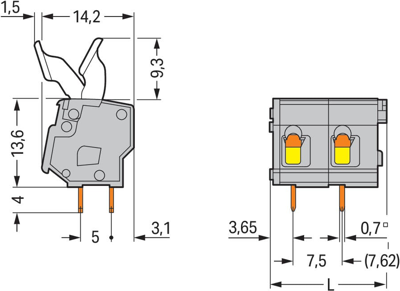

257-404/333-000 WAGO PCB Terminal Blocks Image 1

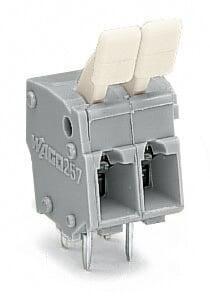

257-404/333-000 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
1.7255 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
1.73 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7255 €

PCB terminal block, 257-404/333-000, WAGO

PCB terminal block, finger-operated levers, 2.5 mm², Pin spacing 5/5.08 mm, 4-pole, commoning option, 2.5 mm², gray.

Features

  • PCB terminal blocks with push-buttons and CAGE CLAMP connection
  • Ideal for in-the-field wiring thanks to simplified push-button actuation
  • Convenient, tool-free operation
Technical specifications
Connection cage clamp
AWG cross-section AWG 28-12
Width 22.9 mm
Colour gray
Height 26.9 mm
Contact distance RM 5/5.08
Cable cross-section 0.08-2.5 mm²
Rated voltage 320 V
Rated current 24 A
Pin number 4 pole
Grid 5 mm
Depth 15.7 mm
Logistics
Country of origin PL
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
